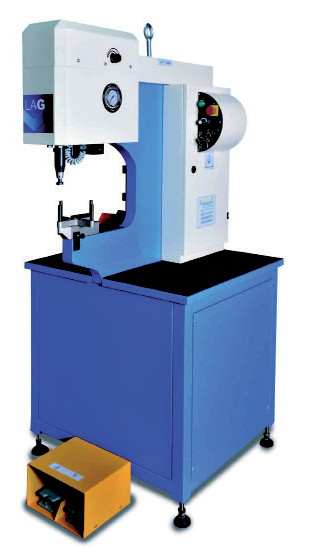

416 Plus
|
主要特點: - 高剛性整體式加工的機身結構，壓鉚工作過程 中無變形，確保壓鉚精度 - 按人體工程學設計的機身結構及完美的模具組 合，簡便靈活的操作模式，一個人就可以方便的 完成大部分復雜的壓鉚工作 - 快速設置最佳的目標壓鉚力并保證壓力重復精 度達到±1% - 沖壓載荷： 最大44KN - 喉深： 406mm - 100%防壓手安全系統 - 最新設計的高可靠性、高穩定的節能液壓系統 - 使噪音降低到35分貝 - 最大可以壓接M8碳鋼螺母于碳鋼基材 - 隨機配置標準工具/模具架 - 標準顏色：藍白 - 標準電壓：?jiǎn)蜗?20V/50HZ Main Feature: -High stiffness, structure, high stability, less deformation, less vibration, high accuracy -Ergonomic design frame and different size tooling package with easy operation panel to meet most of the complex insertion process by single operator -Quick press force setting and repeatability ±1% -Force range MAX 44KN -Throat depth 406 mm -100% safety system -Energy saving re-design reliability and energy efficiency of a full hydraulic system -Noise reduced to 35db -Possibility to insert M8 nut with the mild steel -Equipped with standard tooling storage -Blue & white color -Standard power supply 1 phase 220v/50hz |
 |

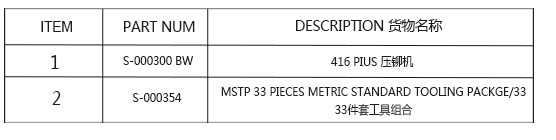

訂貨號
Machine Order Number
